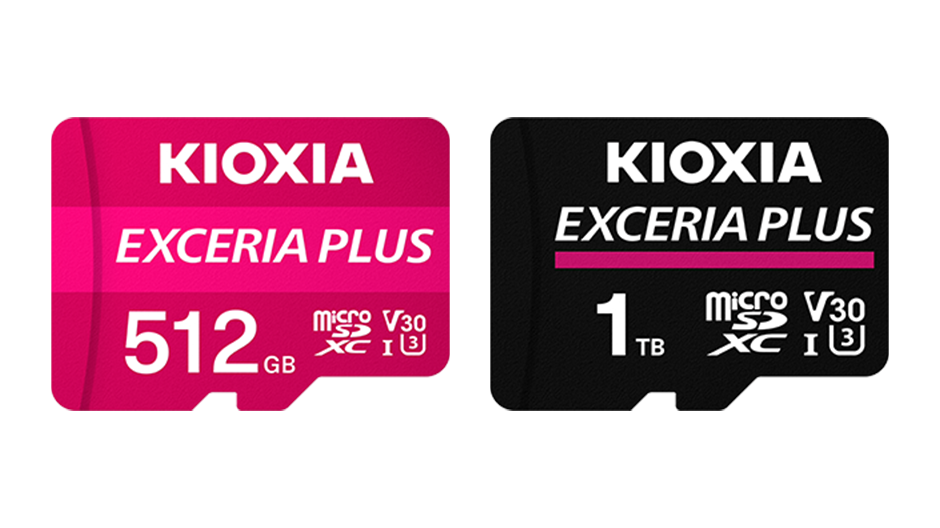

EXCERIA PLUS microSD Memory Card

Features

Product Specifications

Product Comparison

Captivating Performance

Capacity

Magenta:
32GB 64GB 128GB 256GB 512GB

Black:
1TB
Max Read/Write Speed

100/85 MB/s (256GB, 512GB, 1TB)
100/65 MB/s (64GB, 128GB)
98/65 MB/s (32GB)
Speed Class
Application Performance Class
Usage

4K video recording / professional photography

KIOXIA EXCERIA PLUS microSD Memory Cards use BiCS FLASH™ 3D flash memory technology to deliver higher capacities up to 1TB, giving you ample storage space for your photos and videos. It meets Video Speed Class 30 (V30), a video speed class standard for 4K video recording.

In addition to UHS Speed Class 3 (U3), the EXCERIA PLUS microSD card works the Application Performance Class A1, it enables you to store and run Android applications on microSD cards at comfortable levels.

microSD Memory Card Lineup

Features

Ready, Set, Action!

The high performance and small size makes the EXCERIA PLUS microSD memory cards the good choice for sports and action cameras, as well as and drones.

Record and Play in 4K or Full HD

Now you can shoot your special moments in 4K or Full HD with your portable devices. That's because the EXCERIA PLUS microSD memory cards support UHS-I, Speed Class U3 (V30) for 4K video recording and playback.

The Speed You Need

At 1TB capacity, read speeds of up to 100 MB/s and write speeds of up to 85 MB/s*¹, you can keep up with the action around you. When you’re done shooting, you’ll enjoy quick file transfers.

Shoot and Record to Your Heart’s Content

With an available 1TB capacity, the EXCERIA PLUS microSD memory card can store up to 154,070 photos (18MPixel), up to 5,990 minutes of Full HD video (21Mbps), and up to 1,258 minutes of 4K video (100Mbps).

Estimated Number of Photos Taken and Video Recording Time

Photos [shots]*

* Table can be scrolled horizontally.

Capacity	5 Mpixel	10 Mpixel	18 Mpixel
1TB	650,840	304,420	154,070
512GB	325,420	152,210	77,030
256GB	162,710	76,100	38,510
128GB	81,350	38,050	19,250
64GB	40,670	19,020	9,620
32GB	20,330	9,510	4,810

Number of shots: Assuming a compression rate of 1/4. The number of shots that can be taken depends on the subject, shooting conditions, resolution, and compression ratio.

Video [min]*

* Table can be scrolled horizontally.

Capacity	HD(12Mbps)	Full HD(21Mbps)	4K(100Mbps)
1TB	10,480	5,990	1,258
512GB	5,240	2,990	629
256GB	2,620	1,490	314
128GB	1,310	740	157
64GB	650	370	78
32GB	320	180	39

Recording Time: Actual recording time will vary depending on your device, resolution and compression ratio. Calculated as 1 Mbps = 1,000,000 bps.

EXCERIA PLUS microSD Memory Product Specifications

Capacity / dimensions

Capacity

32GB (microSDHC), 64GB, 128GB, 256GB, 512GB, 1TB (microSDXC)
Approximate Usable Capacity^*2

28.8GB, 57.6GB, 115.2GB, 230.4GB, 460.8GB, 921.6GB
Interface

UHS-I
Dimension (LxWxH)

15.0 x 11.0 x 1.0 mm
Weight

Approx. 0.3 g

Performance

Max Read Speed^*1

100 MB/s (64GB, 128GB, 256GB, 512GB, 1TB)
98 MB/s (32GB)
Max Write Speed^*1

85 MB/s (256GB, 512GB, 1TB)
65 MB/s (32GB, 64GB, 128GB)
UHS Speed Class^*3

U3
Video Speed Class^*3

V30
SD Speed Class^*3

C10
Application Performance Class^*4

A1

Operating environment / protection performance

Operating Temperature

-25 ℃ to 85 ℃ (no condensation)
Certification

RoHS compliant^*5
Waterproof

Compatible with IPX7^*6,11
X-ray Proof

ISO7816-1 compliant^*7,11
Shock Proof

Passed 5 meter drop test^*8,11
Overheating/Ignition Prevention

Electrical fuse is mounted^*9,11
ESD Immunity

Resistant to electrostatic discharge^*10,11

Compatibility

Target Applications

Cameras, mobile phones, tablets, and drones.
32GB and Under

Compatible with microSDHC and microSDXC supporting host devices corresponding to FAT32 file system.
64GB and Over

Compatible with microSDXC supporting host devices corresponding to exFAT file system.

Others

Services and Support

5-year limited warranty
Included

SD Adapter LADP1
Copyright Protection (CPRM)

Supported

Product Info

32GB

PN: LMPL1M032GG2
EAN: 4582563850996
64GB

PN: LMPL1M064GG2
EAN: 4582563851009
128GB

PN: LMPL1M128GG2
EAN: 4582563851016
256GB

PN: LMPL1M256GG2
EAN: 4582563851023
512GB

PN: LMPL1M512GG2
EAN: 4582563851030
1TB

PN: LMPL1M001TG2
EAN: 4582563853782

Where to Buy

Find retailers and/or distributors near your area.

Documents & Software Download

Get the latest product briefs, user manuals, safety instructions, software, and more.

KIOXIA microSD Memory Card Comparison

* Table can be scrolled horizontally.

	EXCERIA HIGH ENDURANCE	EXCERIA PLUS G2	EXCERIA PLUS	EXCERIA G2	EXCERIA
Video Recording	4K (64, 128, 256, 512GB) Full HD (32GB)	4K	4K	4K	Full HD
Max Read/Write Speed^*1 (MB/s)	100/85 (256GB, 512GB) 100/65 (64GB, 128GB) 100/30 (32GB)	100/90 (256GB, 512GB, 1TB, 2TB) 100/65 (64GB, 128GB)	100/85 (256GB, 512GB, 1TB) 100/65 (64GB, 128GB) 98/65 (32GB)	100/50	100/--
Capacity^*2	32, 64, 128, 256, 512GB	64, 128, 256, 512GB, 1TB, 2TB	32, 64, 128, 256, 512GB, 1TB	32, 64, 128, 256, 512GB, 1TB	16, 32, 64, 128, 256GB
SD Interface	UHS-I	UHS-I	UHS-I	UHS-I	UHS-I
SD Speed Class^*3	C10	C10	C10	C10	C10
UHS Speed Class^*3	U3 (64, 128, 256, 512GB) U1 (32GB)	U3	U3	U3	U1
Video Speed Class^*3	V30 (64, 128, 256, 512GB) V10 (32GB)	V30	V30	V30	--
Application Performance Class^*4	A1	A1	A1	A1	--
Waterproof^*6,11	Yes	Yes	Yes	Yes	Yes
X-ray Proof^*7,11	Yes	Yes	Yes	Yes	Yes
Shock Proof^*8,11	Yes	Yes	Yes	Yes	Yes
Overheating / Ignition Prevention^*9,11	Yes	Yes	Yes	Yes	Yes
ESD Immunity^*10,11	Yes	Yes	Yes	Yes	Yes
CPRM	Supported	--	Supported	--	--
Endurance	High	Standard	Standard	Standard	Standard
Warranty Period	3 or 5 years	5 years	5 years	5 years	5 years

1 MB/s is calculated as 1,000,000 bytes/s. These values are the best values obtained in a specific test environment at KIOXIA Corporation and KIOXIA Corporation warrant neither read nor write speeds in individual devices. Read and write speed may vary depending on a device used and file size read or written. The write speed is lower than the read speed.
Capacity is based on installed flash memory and not user available memory as part of the memory is used for management functions. Available user area are as listed above (1GB = 1,073,741,824 bytes).
Speed classes indicate the results under the test conditions specified by SD Association.
Application Performance Class is based on the result measured under the conditions specified by SD Association.
KIOXIA Corporation defines “RoHS Compatible” products as products that either ( i ) contain no more than a maximum concentration value of 0.1% by weight in Homogeneous Materials for lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), bis(2-ethylhexyl) phthalate (DEHP), dibutyl phthalate (DBP), benzyl butyl phthalate (BBP) and diisobutyl phthalate (DIBP) and of 0.01% by weight in Homogeneous Materials for cadmium; or ( ii ) fall within any of the application exemptions set forth in the Annex to the RoHS Directive(*). This does not mean that Kioxia Corporation products labeled “RoHS COMPATIBLE” are entirely free of substances controlled by the RoHS Directive and does not constitute a warranty or guarantee that such products will comply with the specific laws and/or regulations adopted in any particular jurisdiction.
*RoHS Directive: KIOXIA Corporation defines “RoHS Directive” as the DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
According to IPX7 standard, the product (only card) can function, after it is submerged quietly and left for 30minutes in static tap water at room temperature(15 °C to 35 °C) and in depth of 1m and then it is taken out of the water.
According to ISO7816-1 standard, the product can function, after contaminating this product on 0.1 Gy of X-ray.
The product (only card) can function, after carrying out the gravity fall of this product (only card) from 5 m in height. ( Based on KIOXIA Corporation's test results.)
KIOXIA Corporation does not warrant that the function of the fuse in the card will be error free, nor does it warrant that any data stored on the card will remain accessible or uncorrupted. Turn off the device immediately in case the card overheats and/or emits a burning smell.
ESD test environment stipulated by IEC61000-4-2 150-pF energy storage capacitor, 330-Ω discharge resistor, ±15-kV air discharge.
KIOXIA Corporation does not warrant any data stored on the product.
Designed target of accumulated time based on Full HD (1920x1080) video content recorded at 21Mbps or 4K (3840x2160) video content recorded at 100 Mbps. Results may vary depending on a device and other conditions.
Operation is not warranted on all devices. Please be sure to check the user’s manual of your host device for product compatibility.
