EXCERIA G3
NVMe™ SSD

Features

Product Specifications

Product Comparison

Next-Gen Speed

Capacity

1TB 2TB
Max Sequential Read/Write Speed

10,000/8,900 MB/s (1TB)
10,000/9,600 MB/s (2TB)
Max Random Read/Write Speed

1,300,000/1,450,000 IOPS(1TB)
1,600,000/1,450,000 IOPS(2TB)
Usage

Client desktops and laptops

Take your first step into PCIe^® 5.0 Performance. The KIOXIA EXCERIA G3 SSD Series, an entry-level model supporting PCIe^® 5.0, takes performance to the next level with up to 10,000 MB/s of sequential read speed^*1, not only accelerating everyday PC tasks, but also supporting AI applications and helping build a comfortable gaming environment. Leveraging BiCS FLASH™ 3D flash memory, this updated SSD series now offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.

SSD Lineup

Features

BiCS FLASH™
NVMe™ 2.0c Technology
M.2 2280 Form Factor
PCIe^® Gen5 x4
SSD Utility Management Software

First Step into PCIe^® 5.0 Performance

Featuring the latest and greatest PCIe^® 5.0 interface, the EXCERIA G3 SSD series delivers excellent transfer speeds of up to 10,000 MB/s for sequential reads and 9,600 MB/s for sequential writes. Whether you are loading the latest game or editing the video, this new series is the ideal choice for anyone looking to experience PCIe^® 5.0 performance.

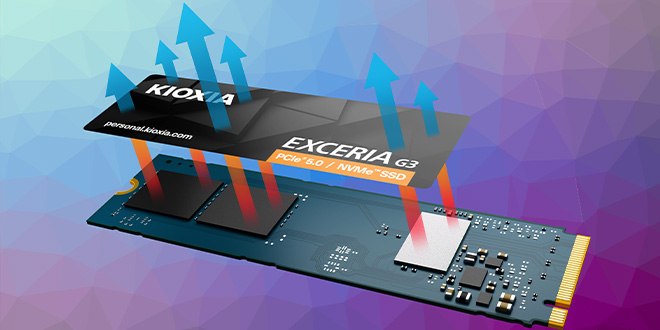

Advanced Heat Dissipation

EXCERIA G3 SSDs feature innovative product labels to enhance heat dissipation for advanced performance stability.

NVMe™ Technology

Utilizing the NVMe™ 2.0c technology, EXCERIA G3 SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience.

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

SSD Utility Management Software

EXCERIA G3 SSD Product Specifications

Capacity / dimensions

Capacity

1TB, 2TB
Form Factor

M.2 Type 2280-S3-M
Interface

PCI Express^® Base Specification Revision 5.0 (PCIe^®)
Flash Memory type

BiCS FLASH™ QLC
Interface Maximum Speed

128 GT/s (PCIe^® Gen5x4)
Dimension (Max: LxWxH)

80.15 x 22.15 x 2.38 mm
Interface Protocol

NVM Express™ Base Specification 2.0c
Weight

1TB: 5.7 g (typ.)
2TB: 5.8 g (typ.)

Performance

Max Sequential Read Speed^*1

10,000 MB/s
Max Sequential Write Speed^*1

1TB: 8,900 MB/s
2TB: 9,600 MB/s
Max Random Read Speed^*2

1TB: 1,300,000 IOPS
2TB: 1,600,000 IOPS
Max Random Write Speed^*2

1,450,000 IOPS
Endurance: TBW^*3

1TB: 600 TB
2TB: 1,200 TB
MTTF

1.5 million hours

Operating environment / protection performance

Operating Temperature

0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature

-40 ℃ to 85 ℃
Certification

RoHS compliant^*5
Shock Resistance

9.806 km/s² {1,000 G} 0.5 ms half sine wave
Vibration

25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis
Supply Voltage

3.3 V ±5 %
Power Consumption

PS3: 50 mW (typ.)
PS4: 5 mW (typ.)
Power Consumption (Active)

1TB: 5.5 W (typ.)
2TB: 6.4 W (typ.)

Compatibility

Connector Type

M.2 M key Socket
Target Applications

Client desktops and laptops

Others

Services and Support

Up to 5-year manufacturer's warranty^*4
Performance Optimization

TRIM, Idle Time Garbage Collection, Host Memory Buffer

Product Info

1TB

PN: LVC10Z001TG8
EAN: 4582761161504
2TB

PN: LVC10Z002TG8
EAN: 4582761161511

Where to Buy

Find retailers and/or distributors near your area.

Documents & Software Download

Get the latest product briefs, user manuals, safety instructions, software, and more.

KIOXIA Solid State Drive (SSD) Comparison

* Table can be scrolled horizontally.

PCIe^® 5.0	EXCERIA PRO G2 SSD	EXCERIA PLUS G4 SSD	EXCERIA G3 SSD
Target User	Professional	Mainstream	Entry
Capacity	1024GB, 2048GB, 4096GB	1TB, 2TB	1TB, 2TB
Max Sequential Read/Write Speed^*1	4096GB: 14,900/13,700 MB/s	2TB: 10,000/8,200 MB/s	2TB: 10,000/9,600 MB/s
Max Random Read/Write Speed^*2	2,300,000/1,950,000 IOPS	1,300,000/1,400,000 IOPS	2TB: 1,600,000/1,450,000 IOPS
Interface	PCIe^® 5.0 / NVMe™ 2.0d	PCIe^® 5.0 / NVMe™ 2.0c	PCIe^® 5.0 / NVMe™ 2.0c
Interface Maximum Speed	128 GT/s (PCIe^® Gen5 x4)	128 GT/s (PCIe^® Gen5 x4)	128 GT/s (PCIe^® Gen5 x4)
Form Factor	4096GB: M.2 Type 2280-S4-M	M.2 Type 2280-S3-M	M.2 Type 2280-S3-M
Endurance (TBW)^*3	Up to 2,400 TB	Up to 1,200 TB	Up to 1,200 TB
Warranty Period^*4	5 years	5 years	5 years

* Table can be scrolled horizontally.

PCIe^® 4.0	EXCERIA PRO SSD	EXCERIA PLUS G3 SSD	EXCERIA BASIC SSD	EXCERIA with Heatsink SSD
Target User	Professional	Mainstream	Entry	Gaming
Capacity	1TB, 2TB	1TB, 2TB	1TB, 2TB	1024, 2048, 4096GB
Max Sequential Read/Write Speed^*1	2TB: 7,300/6,400 MB/s	5,000/3,900 MB/s	2TB: 7,300/6,800 MB/s	4096GB: 6,200/4,800 MB/s
Max Random Read/Write Speed^*2	2TB: 800,000/1,300,000 IOPS	2TB: 680,000/950,000 IOPS	2TB: 1,000,000/1,250,000 IOPS	4096GB: 450,000/810,000 IOPS
Interface	PCIe^® 4.0 / NVMe™ 1.4	PCIe^® 4.0 / NVMe™ 1.4	PCIe^® 4.0 / NVMe™ 2.0d	PCIe^® 4.0 / NVMe™ 1.4
Interface Maximum Speed	64 GT/s (PCIe^® Gen4 x4)	64 GT/s (PCIe^® Gen4 x4)	64 GT/s (PCIe^® Gen4 x4)	64 GT/s (PCIe^® Gen4 x4)
Form Factor	M.2 Type 2280-S2-M	M.2 Type 2280-S4-M	M.2 Type 2280-S3-M	M.2 Type 2280 (Key M) with Heatsink
Endurance (TBW)^*3	Up to 800 TB	Up to 1,200 TB	Up to 600 TB	Up to 2,400 TB
Warranty Period^*4	5 years	5 years	5 years	5 years

EXCERIA PRO SSD / EXCERIA G2 SSD: Sequential speeds are measured with CrystalDiskMark 8.0.1 x64, Q=32, T=1.
EXCERIA PRO G2 SSD / EXCERIA PLUS G4 SSD / EXCERIA PLUS G3 SSD / EXCERIA G3 SSD / EXCERIA BASIC SSD / EXCERIA with Heatsink SSD: Sequential speeds are measured with CrystalDiskMark 8.0.4 x64, Q=32, T=1.
EXCERIA PLUS G2 SSD / EXCERIA PLUS SSD / EXCERIA SSD: Sequential speeds are measured with CrystalDiskMark 6.0.2 x64, Q=32, T=1.
EXCERIA SATA SSD: Sequential speeds are measured with ATTO v3.05, QD10.
These values are the best values obtained in a specific test environment at KIOXIA Corporation and KIOXIA Corporation warrant neither read nor write speeds in individual devices. Read and write speed may vary depending on a device used and file size read or written.
EXCERIA PRO SSD / EXCERIA G2 SSD: 4KiB random performance is measured with CrystalDiskMark 8.0.1 x64, Q=32,T=16.
EXCERIA PRO G2 SSD / EXCERIA PLUS G4 SSD / EXCERIA PLUS G3 SSD / EXCERIA G3 SSD / EXCERIA BASIC SSD / EXCERIA with Heatsink SSD: 4KiB random performance is measured with CrystalDiskMark 8.0.4 x64, Q=32,T=16.
EXCERIA PLUS G2 SSD / EXCERIA PLUS SSD / EXCERIA SSD: 4KiB random performance is measured with CrystalDiskMark 6.0.2 x64, Q=32,T=8.
EXCERIA SATA: 4KiB random performance is measured with CrystalDiskMark 5.1.2 x64 QD32.
These values are the best values obtained in a specific test environment at KIOXIA Corporation and KIOXIA Corporation warrant neither read nor write speeds in individual devices. Read and write speed may vary depending on a device used and file size read or written.
EXCERIA PRO G2 SSD / EXCERIA PRO SSD / EXCERIA PLUS G4 SSD / EXCERIA PLUS G3 SSD / EXCERIA PLUS G2 SSD / EXCERIA PLUS SSD / EXCERIA G3 SSD / EXCERIA G2 SSD / EXCERIA SSD / EXCERIA BASIC SSD / EXCERIA with Heatsink SSD : Definition and conditions of TBW (Terabytes Written) are based on JEDEC standard; JESD219A Solid-State Drive (SSD) Endurance Workloads, July 2012, and defined for the service life.
EXCERIA SATA SSD：Definition and conditions of TBW (Terabytes Written) are based on JEDEC standard; JESD218A, February 2011, and defined for the service life.
MANUFACTURER’S WARRANTY IS EFFECTIVE EITHER (I) WARRANTY PERIOD FROM THE DATE OF PURCHASE IN ITS ORIGINAL SEALED PACKAGING OR (II) FOR THE TIME PERIOD UNTIL THE "PERCENTAGE LIFE LEFT" WILL BE ZERO, WHICHEVER IS SHORTER. The "Percentage Life Left" can be found using "Health" gauge of the SSD Utility for KIOXIA products, which is available at "personal.kioxia.com/support/".
KIOXIA Corporation defines “RoHS Compatible” products as products that either ( i ) contain no more than a maximum concentration value of 0.1% by weight in Homogeneous Materials for lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), bis(2-ethylhexyl) phthalate (DEHP), dibutyl phthalate (DBP), benzyl butyl phthalate (BBP) and diisobutyl phthalate (DIBP) and of 0.01% by weight in Homogeneous Materials for cadmium; or ( ii ) fall within any of the application exemptions set forth in the Annex to the RoHS Directive(*). This does not mean that Kioxia Corporation products labeled “RoHS COMPATIBLE” are entirely free of substances controlled by the RoHS Directive and does not constitute a warranty or guarantee that such products will comply with the specific laws and/or regulations adopted in any particular jurisdiction.
*RoHS Directive: KIOXIA Corporation defines “RoHS Directive” as the DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Compatibility confirmed by KIOXIA's own testing in accordance with the PS5 manufacturer's technical requirements. Tested system software version: 23.02-08.40.00.05-00.00.00.0.1, as of 20.5.2024.
These values are the read out speed per power consumption obtained in a specific test environment at Kioxia Corporation. Power efficiency is the useful output which is measured in tasks per watt.

Definition of capacity: KIOXIA defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 2^30 bytes = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.

A kibibyte (KiB) means 2^10 bytes, or 1,024 bytes, a mebibyte (MiB) means 2^20 bytes, or 1,048,576 bytes, and a gibibyte (GiB) means 2^30 bytes, or 1,073,741,824 bytes.

IOPS: Input Output Per Second (or the number of I/O operations per second)

MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.

PCIe VDM (Vendor Defined Messages) is NOT supported.

Read and write speed may vary depending on the host device, read and write conditions, and file size.

Product specifications and design are subject to change without prior notice.

Product images may represent design model. Actual product may vary.

To protect against accidental data loss, back up your data frequently on other storage media. KIOXIA Corporation does not warrant any data stored on the product.
